1. Summary

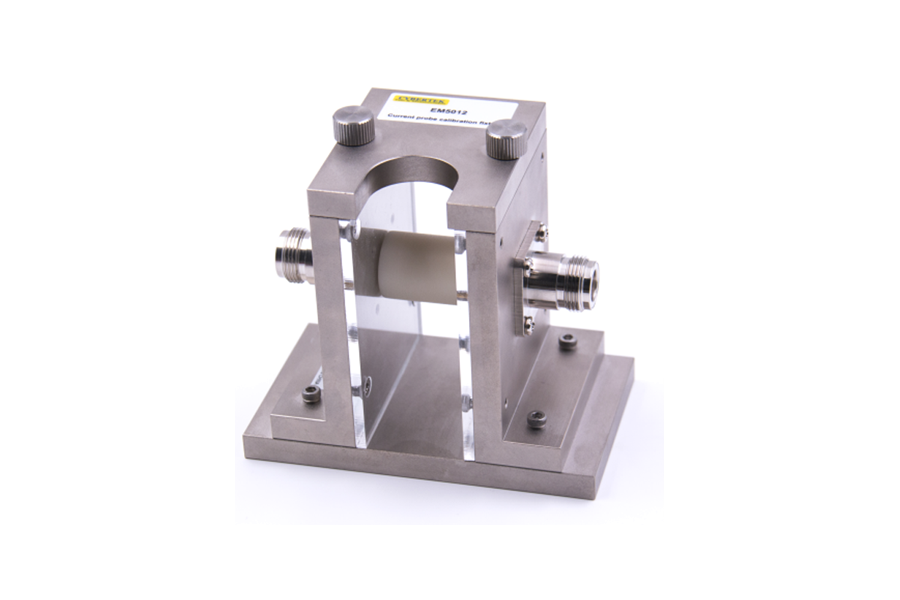

EM5012 current probe calibration fixture is designed for the current calibration of our EM5011, and it can also realize calibration by cooperating with other related current test product. With 50Ω characteristics impedance, Type N coaxial input output port, ø20mm central conductor. Standard 2W 50Ω load (maximum 50W load according to customers’ need. This calibration fixture can execute CS114, CS115, CS116 test from GJB151A-97 GJB152A-97 cooperating with other related product.
1.Product Specification
|
Frequency range |
DC—1000MHz |
|
Characteristics impedance |
50Ω |
|
VSWR |
＜1.5(average) |
|
Injection power |
2W(maximum load up to 50W) |
|
Operating position |
horizontal |
|
Operating temperature and humidity requirement |
0°C to 40°C, 80%RH or less |
|
Storing temperature and humidity requirement |
–40°C to 60°C, 80% RH or less |
|
Dimension L × W × H |
100x60x96mm |
|
Weight |
530g |
