The typical value of outer diameter 1.6mm
The withstand voltage of up to 1KVpk
The typical precision 2%
Insulation voltage 1KV
The standard USB 5V adapter
1.Summary

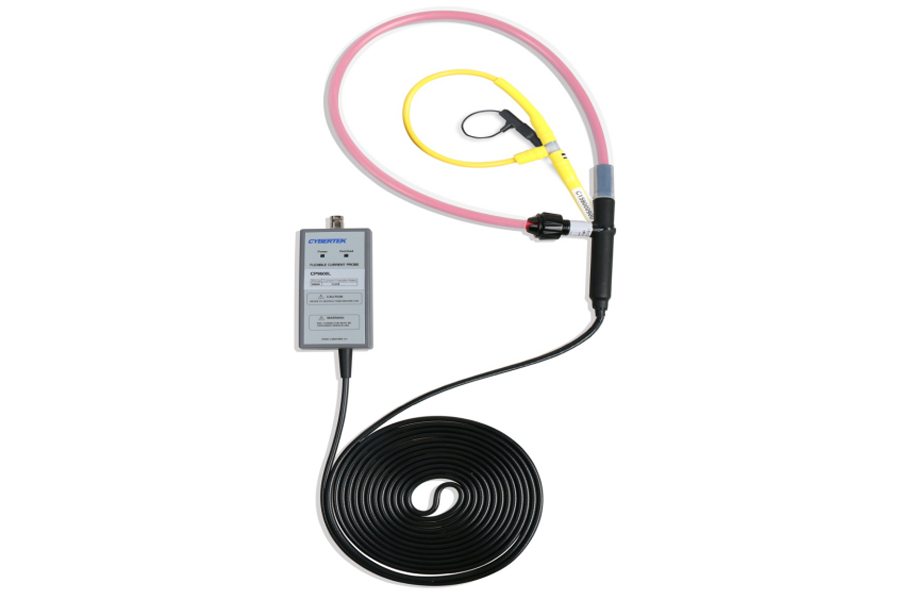

CP9000（S/L）Series are AC Flexible Current Probe .It has the advantages of high bandwidth, high precision (typically 1%) characteristics. The frequency can be from several Hz to tens of MHz, current ranges from mA level to kA level, which solves the problem of current test.
CP9000S Series: Has an extremely thin, clip-around Rogowski coil of typically 1.6mm cross-section. Such a thin coil enables currents to be measured in the most difficult to reach parts of a power Electronic converter with negligible disruption to the circuit under test. It can be used in MOSFET or IGBT devices as small as TO-220 or TO-47. Cross section only 4mm for 2kV isolation. Accuracy is ±2% of reading.
1. Electrical Specifications
Measuring conditions：23℃；60%RH；with conductor central in the loop.
1.1 CP9000S Series
Model | Sensitivity (mV/A) | Peak | Noise max (mV Vpp) | Droop typ. (%/ms) | LF bandwidth -3dB(Hz) | HF bandwidth -3dB(MHz) | Accuracy typ. | Insulation voltage | |
Current （kA） | di/dt (kA/μS) | ||||||||
CP9003S | 200 | 0.03 | 2 | 20 | 80 | 116 | 30 | 2% | 1kV |
CP9006S | 100 | 0.06 | 4 | 20 | 65 | 67 | 30 | ||
CP9012S | 50 | 0.12 | 8 | 15 | 35 | 34 | 30 | ||
CP9030S | 20 | 0.3 | 20 | 15 | 9 | 9.2 | 30 | ||
CP9060S | 10 | 0.6 | 40 | 10 | 6 | 6.2 | 30 | ||
CP9120S | 5 | 1.2 | 70 | 10 | 3 | 3.2 | 30 | ||
CP9300S | 2 | 3.0 | 70 | 5 | 2 | 2 | 30 | ||
CP9600S | 1 | 6.0 | 70 | 5 | 2 | 2 | 30 | ||
