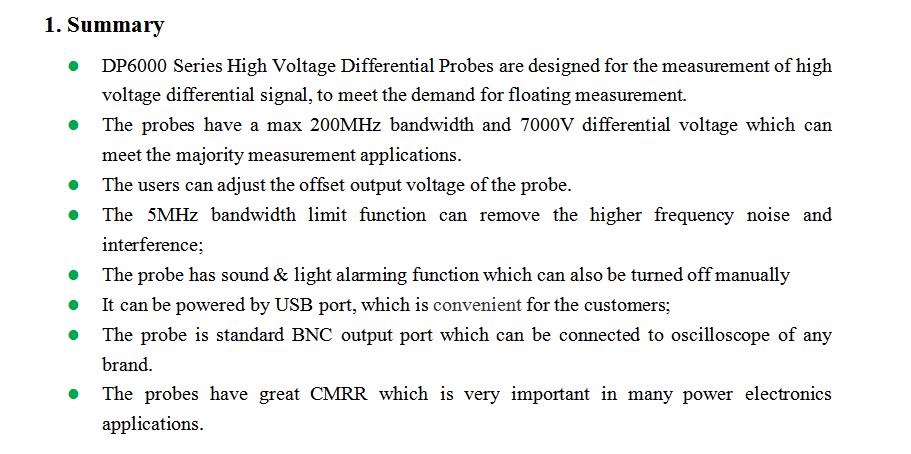

Bandwidth(-3dB）70MHz
Range selection(Attenuation rate) 100X/1000X
Model | DP6150 | DP6350 | DP6700 | ||||
Bandwidth(-3dB） | 70MHz | ||||||
Rise time | ≤5ns | ||||||
Accuracy | ±2% | ||||||
Range selection (Attenuation rate) | 50X/500X | 100X/1000X | 100X/1000X | ||||
Maximum differential voltage(DC + Peak AC) | 50X | ±150V | 100X | ±350V | 100X | ±700V | |
500X | ±1500V | 1000X | ±3500V | 1000X | ±7000V | ||
Common mode voltage (Vp) (DC + Peak AC) | ±1500V | ±3500V | ±7000V | ||||
Maximum differential mode VS frequency curve | Figure 1 | Figure 2 | Figure 3 | ||||
Maximum input voltage-to-earth (Vrms) | 600V CATIII 1000V CATII | 600V CATIII 1000V CATII | 1000V CATIII 2300V CATI* | ||||
Input impedance | Single-ended to ground | 5MΩ | 5MΩ | 20MΩ | |||
Between inputs | 10MΩ | 10MΩ | 40MΩ | ||||
Input capacitance | Single-ended to ground | ＜4pF | ＜4pF | ＜5pF | |||
Between inputs | ＜2pF | ＜2pF | ＜2.5pF | ||||
CMRR | DC | ＞80dB | ＞80dB | ＞80dB | |||
100kHz | ＞60dB | ＞60dB | ＞60dB | ||||
1MHz | ＞50dB | ＞50dB | ＞50dB | ||||
Noise(Vrms) | 50X | ＜50mV | 100X | ＜100mV | 100X | ＜220mV | |
500X | ＜300mV | 1000X | ＜600mV | 1000X | ＜1.2V | ||
Differential overvoltage detection level | 50X | ≥150V | 100X | ≥350V | 100X | ≥700V | |
500X | ≥1500V | 1000X | ≥3500V | 1000X | ≥7000V | ||
Propagation time | Probe | 50X | 9ns | 100X | 9.3ns | 100X | 9.3ns |
500X | 7.5ns | 1000X | 7.4ns | 1000X | 7.2ns | ||
BNC Line(1m) | About 5ns | ||||||
Bandwidth limit filters (5MHz) | ≥-3dB@5MHz | ||||||
Overload indicator (red light） | Yes | ||||||
Overload alarm | Yes(Can shut up manually) | ||||||
Automatic save | Yes | ||||||
Offset setting function | Yes（ Set in test mode） | ||||||
Terminate load | ≥100kΩ | ||||||
Power supply | USB 5V/1A adapter | ||||||
Safety standard | IEC/EN 61010-031:2015 + AMD1:2018 | ||||||
EMC standard | EN61326-1:2013 EN61000-3-2:2006+A1:2009+A2:2009 EN61000-3-3:2013 | ||||||
*CAT I per IEC/EN 61010-031/A1:2008. No Rated Measurements Category per IEC/EN 61010-031:2015 + AMD1:2018.
